CCS Authorised Inflatable Natural Rubber High-pressure Marine Airbag For Ship Launching
High-pressure Marine Airbag Description
High-pressure marine airbags are innovative products with independent intellectual property rights in China. It has a wide range of applications, such as ship launching and upgrading, caisson lifting and moving, heavy lifting, underwater engineering buoyancy aids. Inflatable rubber roller bags are not limited to space and heavy machinery, they can effectively shorten the construction period and save a lot of money.
With more than 20 years of development in China, high-pressure marine airbags have proven to be the most reliable and stable technology for ship launching and upgrading. It is suitable for large ships ranging from several tons of flat plates to 10,000 tons. At the same time, high-pressure marine airbags are also widely recognized by foreign docks, shipyards, and port/port construction companies. In the United States, Europe, Southeast Asia, and other markets, the launching and upgrading technology of ships with high-pressure marine airbags has also been vigorously promoted.
High-pressure Marine Airbag Advantages
- Saving labor cost and time
- Lightweight and easy to deploy
- High capacity against compression and twisting
- Big carrying capacity
- Durable aging resistance and anti-wear characteristic
- New design of anti-bursting construction at the end
- Beyond space limitation
High-pressure Marine Airbag Application
- Ship launching and upgrading
- Ship salvage
- Weight moving & lifting
- Caissons lifting and floating
- Pipeline blocking
Constructions Of High-pressure Marine Airbag
1) Outer rubber layer
The outer rubber layer covers the exterior of the high-pressure marine airbag to protect the lower layer from wear and other external forces. The compound has sufficient tensile strength and tear strength can withstand any severe conditions and hard use.
2) Inner rubber layer
The inner rubber layer seals the compressed air in the high-pressure marine airbag body.
3) Synthetic tire cord layer as a reinforcement layer
The reinforced cord layer is made of synthetic tire cord, arranged at the desired angle to maintain internal pressure and evenly distribute stress. Therefore, they can provide strong and effective reinforcement.
High-pressure Marine Airbag Specification
| Series | Model | Diameter(m) | Working Pressure(Mpa) | Working Height(m) | Beating Capacity(Ton/m) |
| 0.4D | 0.5D | 0.6D | 0.4D | 0.5D | 0.6D |
| S1 | S10 | 0.8 | 0.20 | 0.32 | 0.40 | 0.48 | 15.1 | 12.6 | 10.0 |
| 1 | 0.16 | 0.40 | 0.50 | 0.60 | 15.1 | 12.6 | 10.0 |
| 1.2 | 0.14 | 0.48 | 0.60 | 0.72 | 15.8 | 13.2 | 10.6 |
| 1.5 | 0.11 | 0.60 | 0.75 | 0.90 | 15.5 | 13.0 | 10.4 |
| S11 | 0.8 | 0.19 | 0.32 | 0.40 | 0.48 | 14.3 | 11.9 | 9.5 |
| 1 | 0.15 | 0.40 | 0.50 | 0.60 | 14.1 | 11.8 | 9.4 |
| 1.2 | 0.13 | 0.48 | 0.60 | 0.72 | 14.7 | 12.2 | 9.8 |
| 1.5 | 0.10 | 0.60 | 0.75 | 0.90 | 14.1 | 11.8 | 9.4 |
| S12 | 0.8 | 0.24 | 0.32 | 0.40 | 0.48 | 18.1 | 15.1 | 12.1 |
| 1 | 0.19 | 0.40 | 0.50 | 0.60 | 17.9 | 14.9 | 11.9 |
| 1.2 | 0.16 | 0.48 | 0.60 | 0.72 | 18.1 | 15.1 | 12.1 |
| 1.5 | 0.13 | 0.60 | 0.75 | 0.90 | 18.4 | 15.3 | 12.2 |
| 1.8 | 0.10 | 0.72 | 0.90 | 1.08 | 17.0 | 14.1 | 11.3 |
| S2 | S20 | 1 | 0.24 | 0.40 | 0.50 | 0.60 | 22.6 | 18.8 | 15.1 |
| 1.2 | 0.20 | 0.48 | 0.60 | 0.72 | 22.6 | 18.8 | 15.1 |
| 1.5 | 0.16 | 0.60 | 0.75 | 0.90 | 22.6 | 18.8 | 15.1 |
| 1.8 | 0.13 | 0.72 | 0.90 | 1.08 | 22.0 | 18.4 | 14.7 |
| 2 | 0.12 | 0.80 | 1.00 | 1.20 | 22.6 | 18.8 | 15.1 |
| S21 | 1 | 0.27 | 0.40 | 0.50 | 0.60 | 25.4 | 21.2 | 17.0 |
| 1.2 | 0.23 | 0.48 | 0.60 | 0.72 | 26.0 | 21.7 | 17.3 |
| 1.5 | 0.18 | 0.60 | 0.75 | 0.90 | 25.4 | 21.2 | 17.0 |
| 1.8 | 0.15 | 0.72 | 0.90 | 1.08 | 25.4 | 21.2 | 17.0 |
| 2 | 0.14 | 0.80 | 1.00 | 1.20 | 26.4 | 22.0 | 17.6 |
| S22 | 1 | 0.31 | 0.40 | 0.50 | 0.60 | 29.2 | 24.3 | 19.5 |
| 1.2 | 0.26 | 0.48 | 0.60 | 0.72 | 29.4 | 24..5 | 19.6 |
| 1.5 | 0.20 | 0.60 | 0.75 | 0.90 | 28.3 | 23.6 | 18.8 |
| 1.8 | 0.17 | 0.72 | 0.90 | 1.08 | 28.8 | 24.0 | 19.2 |
| 2 | 0.15 | 0.80 | 1.00 | 1.20 | 28.3 | 23.6 | 18.8 |
| 2.5 | 0.12 | 1.00 | 1.25 | 1.50 | 28.3 | 23.6 | 18.8 |
| S3 | S30 | 1 | 0.35 | 0.40 | 0.50 | 0.60 | 33.0 | 27.5 | 22.0 |
| 1.2 | 0.29 | 0.48 | 0.60 | 0.72 | 32.8 | 27.3 | 21.9 |
| 1.5 | 0.23 | 0.60 | 0.75 | 0.90 | 32.5 | 27.1 | 21.7 |
| 1.8 | 0.19 | 0.72 | 0.90 | 1.08 | 32.2 | 26.8 | 21.5 |
| 2 | 0.17 | 0.80 | 1.00 | 1.20 | 32.0 | 26.7 | 21.4 |
| 2.5 | 0.14 | 1.00 | 1.25 | 1.50 | 33.0 | 27.5 | 22.0 |
For further information free to contact us.
Product Tags:
|
|

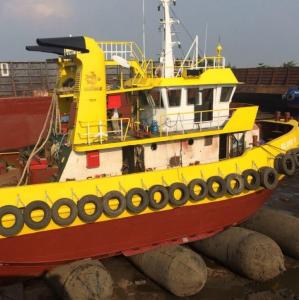

Inflatable Ship Launching High Pressure Marine Rubber Airbag Images
|
